Size classes XS to XXL
Every model belongs to a class. Multi-vendor sourcing makes the classes 1:1 substitutable.

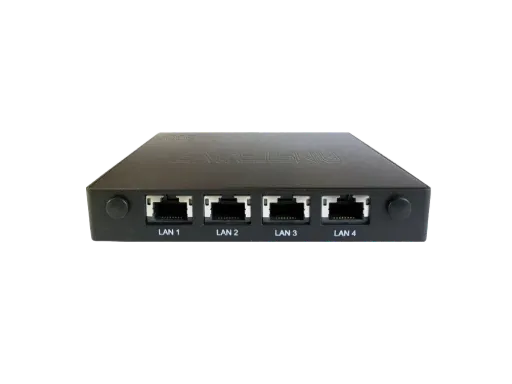

AIMSTRONG XS
For home offices, small offices and edge deployments · desktop
- Intel Atom x7000 with 4 cores
- 8 GB DDR5
- 6x 2.5GbE
- Rack versions XSR and XSR-HA with their own hardware

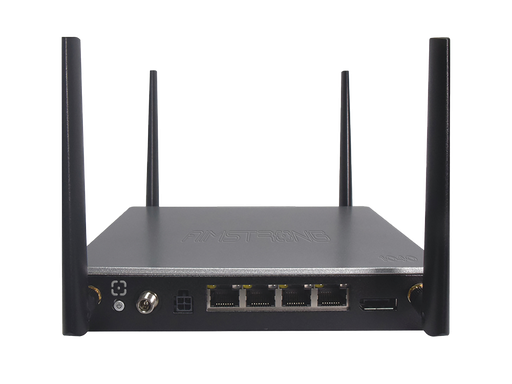

AIMSTRONG S
For branch offices · formerly 1040
- Fanless desktop, Celeron J6412
- 4x 2.5GbE
- Optional Wi-Fi, LTE or 5G for failover
AIMSTRONG M
For mid-sized businesses · 19-inch, 1U
- Intel Atom P5000 with crypto acceleration (QAT)
- 16 to 32 GB RAM
- 8x GbE and 4x 10G SFP+

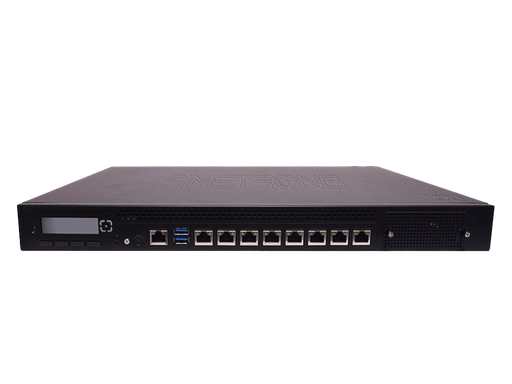

AIMSTRONG L
For larger sites · 19-inch, 1U
- Intel Core i5 (14000 series), Core i7 optional
- 16 to 32 GB DDR5
- 8x 2.5GbE and one NIC module slot

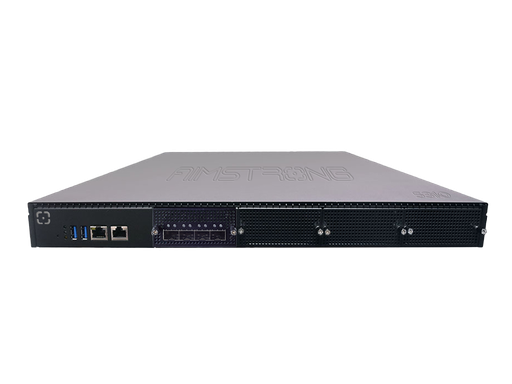

AIMSTRONG XL
For enterprise edge and HA clusters · 19-inch, 1U
- 5th Gen Intel Xeon Scalable
- 64 to 128 GB DDR5
- NIC modules up to 100G

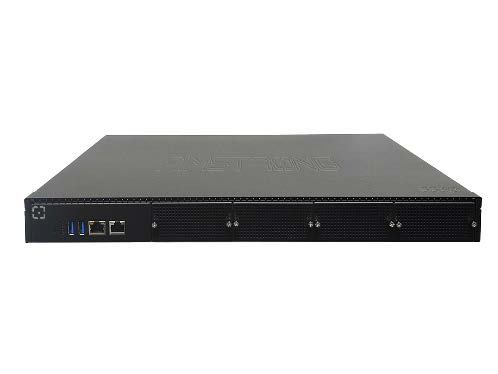

AIMSTRONG XXL
For data centers and critical infrastructure · 19-inch, 2U
- Intel Xeon 6, single or dual processor
- 128 GB DDR5 or more
- Modular NIC bays up to 100G
Pricing and lead time on request. Whether XS or S is the right fit depends on the throughput and the number of users at the site. We can help you choose.
A dedicated IND line for industrial and edge use is in development: fanless, DIN rail mounting, extended temperature range. Details on request.
Technical data by class
The configuration of the six classes at a glance.
| Class | Form factor | Processor | Memory | Network |
|---|---|---|---|---|
| AIMSTRONG XS | Desktop | Intel Atom x7000, 4 cores | 8 GB DDR5 | 6x 2.5GbE |
| AIMSTRONG S | Fanless desktop | Intel Celeron J6412, 4 cores | 8 GB DDR4 | 4x 2.5GbE, optional Wi-Fi, LTE or 5G |
| AIMSTRONG M | 19-inch, 1U | Intel Atom P5000 with QAT | 16 to 32 GB | 8x GbE, 4x 10G SFP+ |
| AIMSTRONG L | 19-inch, 1U | Intel Core i5 (14000 series), Core i7 optional | 16 to 32 GB DDR5 | 8x 2.5GbE, one NIC module slot |
| AIMSTRONG XL | 19-inch, 1U | 5th Gen Intel Xeon Scalable | 64 to 128 GB DDR5 | NIC modules up to 100G |
| AIMSTRONG XXL | 19-inch, 2U | Intel Xeon 6, single or dual processor | 128 GB DDR5 or more | Modular NIC bays up to 100G |
The rack versions XSR and XSR-HA have their own hardware, see Rack versions.
Calculated line rate per port
This is the most a port can carry in each direction. The values describe the interface, not the throughput of a device running firewall rules, IPS or VPN.
| Port | Available in | 64 bytes, packets/s | 64 bytes, Mbit/s | 1518 bytes, Mbit/s |
|---|---|---|---|---|
| GbE | M, XSR, XSR-HA, NIC module 8x GbE RJ45 | 1,488,095 G | 761.9 G | 987.0 G |
| 2.5GbE | XS, S, L | 3,720,238 G | 1,904.8 G | 2,467.5 G |
| 10G SFP+ | M, NIC module 4x 10G SFP+, NIC module 8x 10G SFP+ | 14,880,952 G | 7,619.0 G | 9,870.0 G |
| 100G QSFP28 | NIC module 2x 100G QSFP28 | 148,809,524 G | 76,190.5 G | 98,699.6 G |
G = calculated from the line rate (G for German “gerechnet”). The basis is 20 bytes of preamble and interframe gap per packet. Mbit/s counts the bits of the Ethernet frames. M = measured. We list measured values only once the test report and the raw data are available and have been checked. Until then, this page shows no measured value. Configuration per class, subject to change.
Rack versions
For 19-inch racks, the entry class comes in separate rack versions with their own hardware. They have an R in their name.
AIMSTRONG-XSR
Rack version of class XS
- 19-inch, 1U, fanless
- Celeron N3350, 8 GB RAM
- 4x GbE, 128 GB mSATA
AIMSTRONG-XSR-HA
Redundant rack version of class XS
- Two complete systems in 1U
- For high availability (HA)
- 4x GbE per system
Discontinued models
These units are no longer part of our product line. We still deliver them while stock lasts. The right-hand column shows the class that takes over their role. Ask us which units are still available.
| Form factor | Features | Successor class |
|---|---|---|
| Desktop | SFP or 10G SFP+ uplinks, for vCPE/uCPE | AIMSTRONG XS or S |
| 19-inch, 1U | 10G SFP+, redundant power supply | AIMSTRONG M |
| 19-inch, 1U | Details on request | AIMSTRONG L |
| 19-inch, 1U | IPMI, four NIC slots, redundant power supplies | AIMSTRONG XL |
| Fanless desktop | Entry-level unit, 4x GbE | Discontinued, no successor |
Accessories & NIC modules
NIC modules for classes L, XL and XXL. Ask us which module fits which class. Expansion kits (5G, LTE, Wi-Fi, rack mount) are also available on request.
NIC module 4x 10G SFP+
Request a quoteNIC module 8x 10G SFP+
Request a quoteNIC module 8x GbE RJ45
Request a quoteNIC module 2x 100G QSFP28
Request a quoteAdditional NIC modules available on request.
Camera Box
Not sure which class fits?
We provide vendor-independent advice and put together the right quote.
